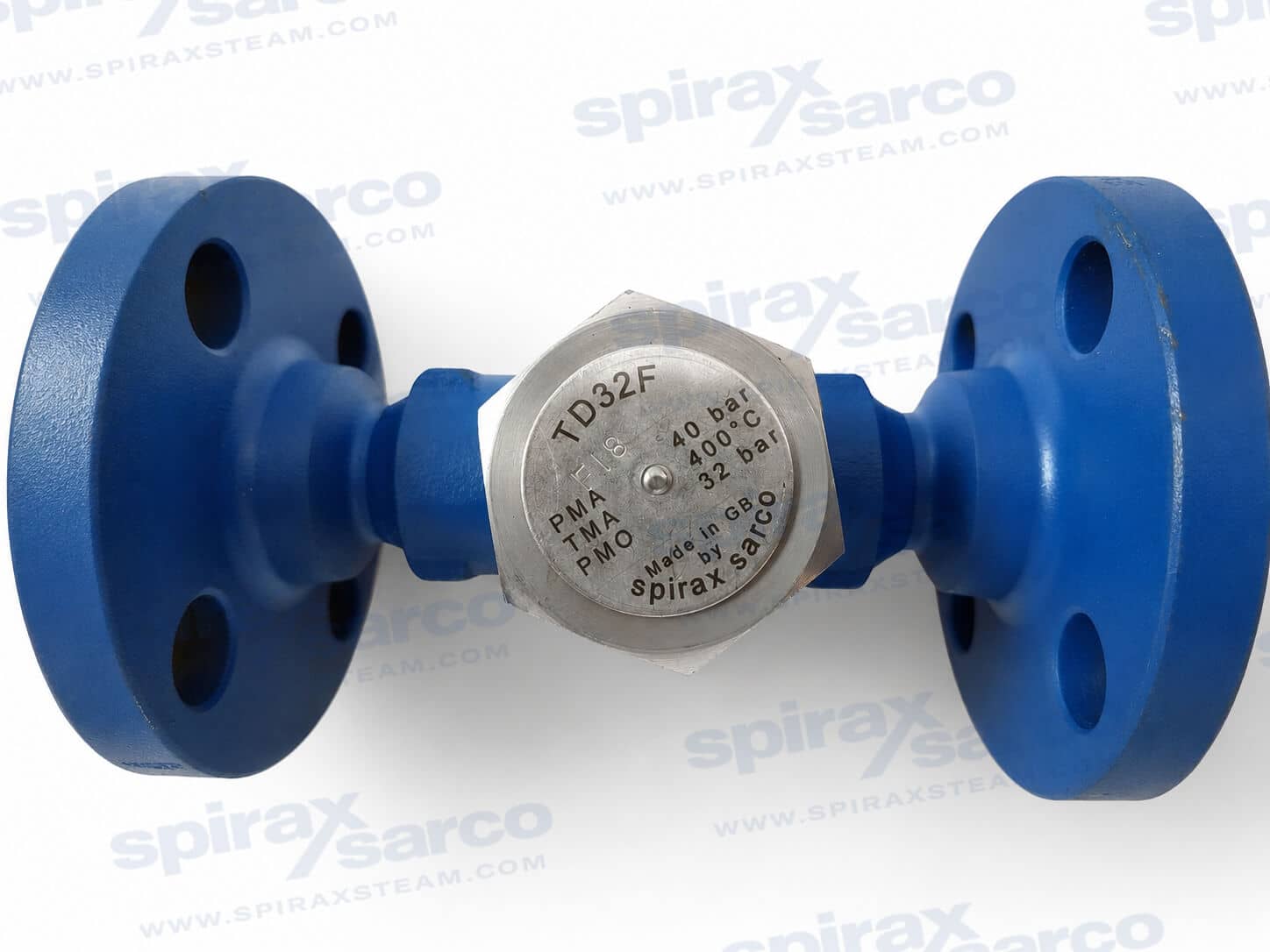

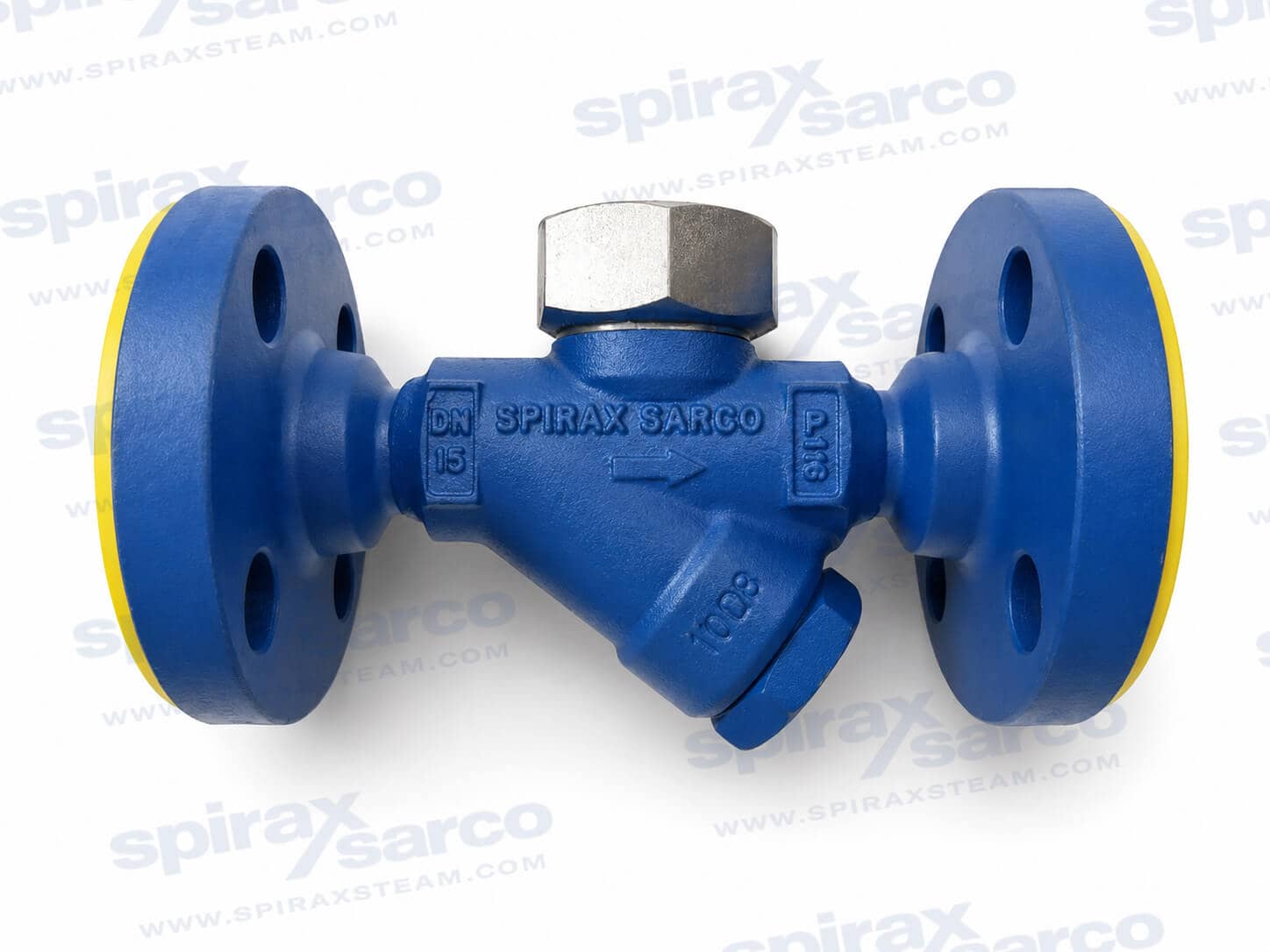

TD32F flanged thermodynamic steam trap

Where TD32F fits in the range

TD32F is the model route for steam systems that already need a flanged, maintainable and compact disc trap. For Spirax Sarco TD32F, TD32F steam trap or installed-base replacement searches, this page clarifies the product boundary more directly than the wider thermodynamic steam trap category.

What current documentation confirms

• TD32F is a maintainable medium-pressure thermodynamic steam trap with flanged connections and an integral strainer
• TD32FLC is the low-capacity route
• TD32FA and TD32FALC include an anti-air-binding disc for start-up air release
• documented sizes cover DN15, DN20 and DN25, including corresponding LC low-capacity sizes
• flange standards include ANSI B16.5 Class 150 / 300, DIN 2501 PN40 and JIS / KS 10 / 16 / 20
• the body design condition is PN40, with maximum operating pressure at 32 bar g
• minimum operating pressure is 0.25 bar g; maximum back pressure is 80% of upstream pressure

What to confirm before ordering or replacement

Before moving into final specification, confirm whether the duty should stay on standard TD32F, move to TD32FLC for low-capacity service, or use TD32FA / TD32FALC when start-up air release and anti-air-binding behaviour matter. Also confirm DN size, flange standard, downstream back pressure, and whether a check valve or diffuser should be added downstream.

TD32F selectable specifications

The specification selector above shows the available TD32F PN40 body specifications for DN15, DN20 and DN25. If the duty needs LC low-capacity or A anti-air-binding options, include the required model, size, flange rating and option in the enquiry.

If the project still needs wider family comparison, return to thermodynamic steam traps or the wider steam traps route. If the next step is working-principle confirmation, continue into thermodynamic steam trap knowledge.
