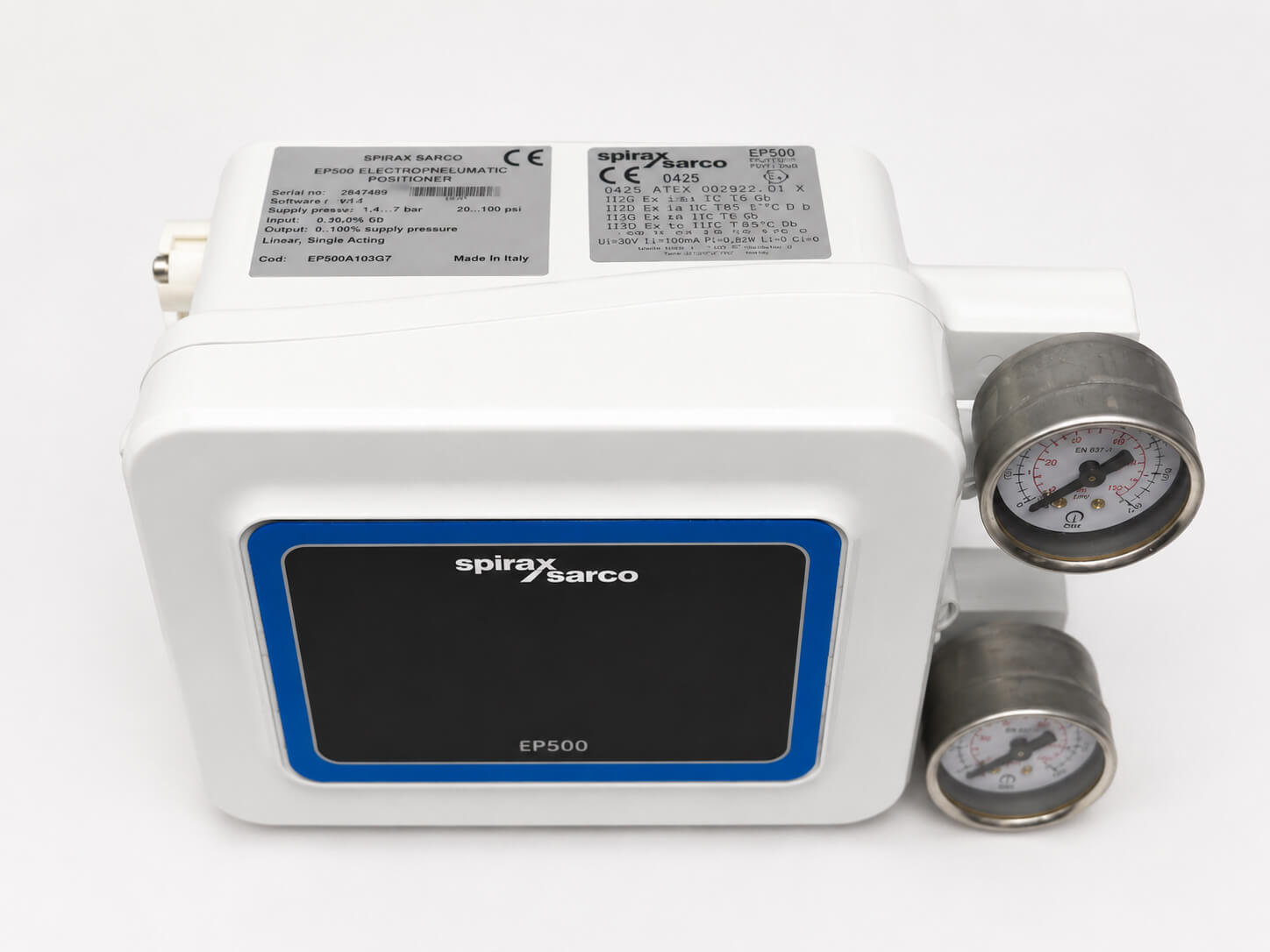

Spirax Sarco EP500 Electro-pneumatic Positioner
Spirax Sarco EP500 เป็น standard electro-pneumatic valve positioner สำหรับวาล์ว pneumatic แบบ linear และ rotary 90 องศา ใช้สัญญาณ 4-20 mA, mechanical feedback และปรับ pneumatic output ไปยัง actuator มีเกจวัดแรงดันในตัวสำหรับสังเกตแรงดันอากาศและสถานะ actuator เหมาะกับงานที่ไม่ต้องการ digital communication หรือ advanced diagnostics
ข้อเท็จจริง
EP500 อยู่ตรงไหนใน control range
EP500 อยู่ในกลุ่ม Spirax Sarco positioners, controllers and sensors เป็น standard electro-pneumatic positioner เมื่อเทียบกับ SP400 (loop-powered smart) และ SP500 (smart พร้อม HART) EP500 เน้นงานอุตสาหกรรมทั่วไปที่ต้องการตำแหน่งวาล์วที่เชื่อถือได้และบำรุงรักษาง่าย ไม่ต้องการ digital communication หรือ diagnostics
EP500 เหมาะสำหรับ control valve บนไอน้ำ ก๊าซ และของเหลว สำหรับ general industrial process control loops และสำหรับโครงการที่ต้องการลดเวลา commissioning
คุณสมบัติผลิตภัณฑ์
EP500 ใช้สัญญาณ 4-20 mA เพื่อกำหนดตำแหน่งวาล์ว ออกแบบเน้นความสะดวกในการติดตั้งและบำรุงรักษาภาคสนาม
คุณสมบัติหลัก:
- เกจวัดแรงดันในตัวสำหรับสังเกตแรงดันอากาศและสถานะ actuator โดยตรง
- Central หรือ offset mounting สำหรับเงื่อนไขการติดตั้งที่แตกต่างกัน
- ฝาพับบานพับและโครงสร้างต่อสายที่สะดวก ช่วยให้ commissioning และบำรุงรักษาง่ายขึ้น
- ฝาครอบต่อไฟฟ้าแบบถอดเร็ว
- สามารถทำงาน split range กับ controller ที่เหมาะสม
- มาตรฐานป้องกัน IP65 สำหรับสภาพแวดล้อมอุตสาหกรรม
ความแตกต่างจาก SP400 และ SP500
EP500 เป็น standard positioner, SP400 และ SP500 เป็น smart positioner ความแตกต่างหลัก:
| คุณสมบัติ | EP500 | SP400 | SP500 |
|---|---|---|---|
| ประเภท | Standard electro-pneumatic | Loop-powered smart | Loop-powered smart |
| Feedback | Mechanical | Non-contact, Hall effect | Non-contact, Hall effect |
| HART | ไม่มี | ไม่มี | Optional |
| Diagnostics | ไม่มี | ไม่มี | มี |
| Auto commissioning | ไม่มี | มี | มี |
| แอปพลิเคชัน | General industrial | ต้องการ smart positioning | ต้องการ communication และ diagnostics |
หากโครงการต้องการ auto commissioning, non-contact feedback หรือ HART แนะนำดู SP400 หรือ SP500
การติดตั้งและการเลือกรุ่น
EP500 มีตัวเลือก central หรือ offset mounting สำหรับ actuator ที่มี stroke 10 ถึง 100 mm
ก่อนเลือก ควรยืนยัน:
- Actuator type (linear หรือ rotary) และ stroke range จริง
- Control signal เป็น 4-20 mA
- เงื่อนไขการติดตั้ง — central หรือ offset mounting เหมาะสมกว่า
- ต้องการ split range หรือไม่
- ต้องการเกจวัดแรงดันในตัวสำหรับสังเกตแรงดันและสถานะหรือไม่
- ต้องการ配套 filter regulator หรือไม่
เอกสารทางเทคนิค
คู่มือการติดตั้งและบำรุงรักษา EP500 (IM-P343-44) ครอบคลุมวิธีการติดตั้ง การต่อสาย commissioning การเดินเครื่อง และขั้นตอนบำรุงรักษา
Related routes
- กลับไปที่ positioners, controllers and sensors เพื่อเปรียบเทียบ EP500 กับ SP400, SP500, SP7, SX80 และ feedback products อื่น
- ดู SP400 positioner — smart alternative พร้อม auto commissioning
- ดู SP500 smart positioner — smart version พร้อม HART และ diagnostics
- ดู pneumatic actuators เพื่อยืนยัน actuator type และ stroke สำหรับ EP500
การติดตั้งและการบำรุงรักษา
| เอกสาร | เอกสารอ้างอิง | ภาษา | ดาวน์โหลด |
|---|---|---|---|
| EP500 Standard Electropneumatic Positioner | IM-P343-44 | English | ดาวน์โหลด |
เลือก EP500 ต่อ
การเลือก EP500 มักต้องยืนยัน actuator type, stroke range, mounting method และ split range requirements
เปรียบเทียบ positioner range
กลับไปที่ positioners, controllers and sensors เพื่อเปรียบเทียบ EP500 กับ SP400, SP500, SP7, SX80 และ feedback products อื่น
จับคู่ pneumatic actuator
EP500 มักติดตั้งร่วมกับ pneumatic actuator ยืนยัน stroke range, mounting method (central หรือ offset) และ supply conditions
สร้าง complete valve package
เมื่อต้องการ complete control valve package ยืนยัน valve body, actuator, positioner, filter regulator และ site accessories
