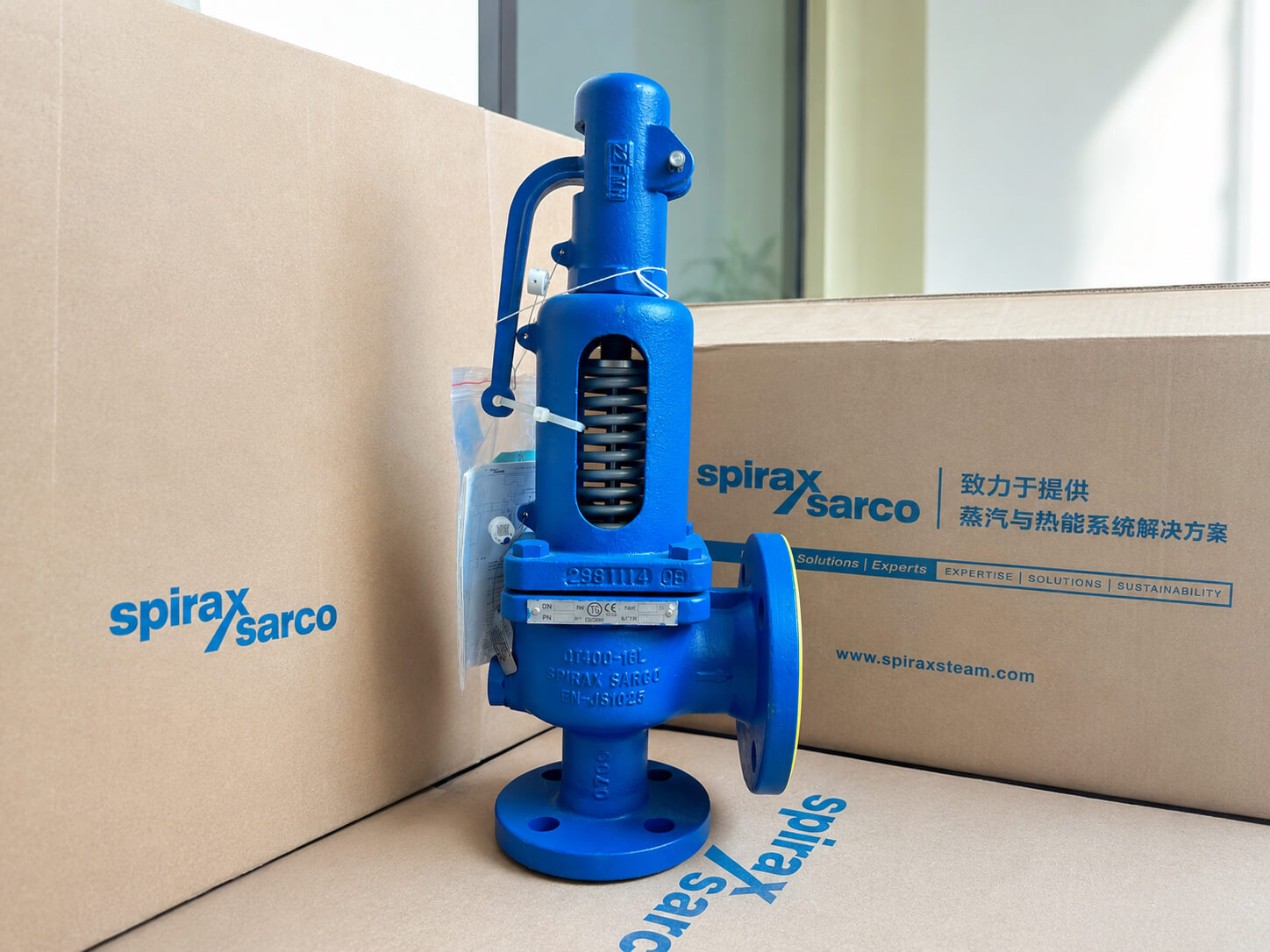

Spirax Sarco SV607DS Safety Valve

Where Spirax Sarco SV607DS sits in the range

The current source-markdown brochure, technical information and installation material document SV607 as part of the SV60 flanged full-lift safety valve family, alongside the carbon steel SV604 route. This page uses SV607DS as a concrete order-code level model within that documented SV607 ductile-iron platform, which gives users a clearer landing page than a broad family-only route.

Keyword evidence does not currently come from the US export, but the French and Spanish keyword sets already contain English model queries such as spirax sarco sv607 and sv607 spirax sarco. That is enough to justify an exact-model page for users who are already in replacement, installed-base or specification mode.

What the source material confirms

Current source material confirms the following platform facts for the SV607 route:

• SV607 belongs to the SV60 flanged full-lift safety valve family
• it is intended for steam, industrial inert gas and water systems
• the documented body and cover material is ductile iron GJS-400-18LT
• inlet size scope runs from DN20 to DN150
• the standard inlet route is PN25, with PN16 also documented from DN65 to DN150
• the outlet flange route is PN16
• the documented minimum set pressure is 0.2 barg
• the documented maximum temperature is 350°C

Connection, ordering and application boundaries

The source files do not publish every SV607DS combination as a standalone commercial datasheet. What they do publish is the SV60 ordering structure together with the technical limits of the SV607 platform. In practice that means SV607DS should be treated as a specific order-code route inside the documented SV607 range, then checked against actual size, inlet flange class and set pressure in the technical and installation documents before final specification.

That makes this route especially useful where the valve is being reviewed for downstream protection after a pressure reducing station, for pressure-vessel relief or for replacement of an already recognised installed valve.

What to confirm before final specification

• actual service medium and relieving duty
• required inlet and outlet size combination
• whether the inlet route needs PN25 or PN16
• set pressure versus equipment maximum allowable pressure
• whether bonnet and lifting configuration need additional confirmation
