BRV71 Direct Acting Pressure Reducing Valve

Spirax Sarco BRV71: Direct Acting Pressure Reducing Valve

Spirax Sarco BRV71 is a ductile iron, direct acting pressure reducing valve for steam systems, with screwed BSP or NPT connections in 1 inch, 1 1/4 inch, 1 1/2 inch and 2 inch sizes. It is intended for controlled reduction of steam pressure where the selected downstream set pressure, flow demand and pressure ratio are known before the valve is ordered. The valve can also be used with compressed air and inert industrial gases within the documented operating limits. Its compact direct acting arrangement provides a self-acting control path without an external power supply, while the colour-identified spring ranges make the downstream pressure range visible at the handwheel.

How the BRV71 controls pressure

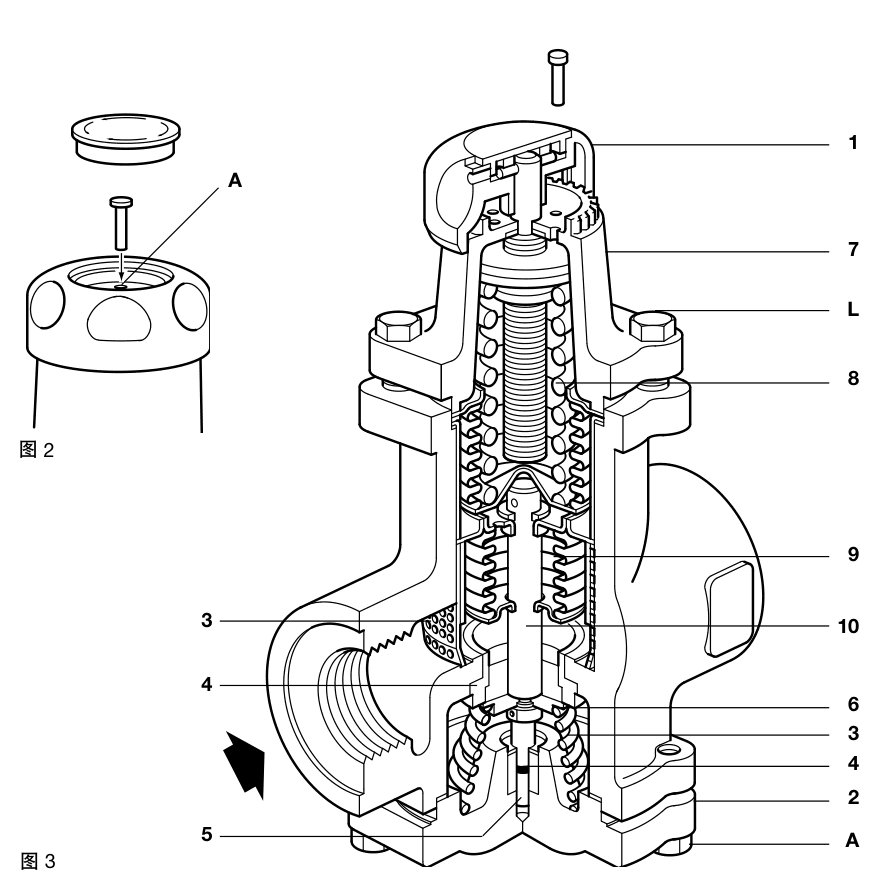

The downstream pressure is fed back through a sensing hole in the stem. Pressure acting on the control bellows is balanced against the compression of the control spring, so the valve responds to changes in downstream conditions through a mechanical feedback system. A balancing bellows reduces the force that upstream and downstream pressure would otherwise apply to the plug face. Graphite-filled PTFE bushes in the stem and bottom-cover assemblies provide two-point guidance for the moving components. This arrangement is useful when a steam line needs pressure reduction with a clear, serviceable mechanical operating principle and no electrical signal or instrument air connection.

The body and bottom cover are ductile iron with an ELNP coating, while the principal internal working parts are stainless steel. The spring chamber is aluminium, the control and balance bellows are stainless steel, and the valve includes an internal stainless steel strainer. These material statements describe the documented construction; actual compatibility must still be checked against the process medium, temperature, pressure and any contaminants in the system.

Spring ranges and downstream pressure selection

BRV71 is supplied with one of three colour-identified control springs. The grey spring covers 0.14-1.7 bar g, the green spring covers 1.40-4.0 bar g, and the orange spring covers 3.50-9.0 bar g. When the required setting falls within an overlap, the technical information recommends using the lower-range spring for better control. The range is marked at the adjustment handwheel, so the spring colour and pressure range should be verified against the application before commissioning.

Pressure, temperature and reduction limits

The exact BRV71 technical information specifies a PN16 body design condition. The maximum allowable pressure is 16 bar g at 120 °C, and the maximum allowable and operating temperature is 184 °C at 10 bar g. The maximum operating pressure for saturated steam is 10 bar g, the maximum downstream set pressure is 9 bar g, and the maximum operating differential pressure is 10 bar. At maximum flow, the recommended maximum pressure reduction ratio is 10:1. The minimum allowable temperature is -10 °C, while the minimum operating temperature is 0 °C; operation below that temperature requires consultation with the manufacturer.

These values are linked conditions rather than independent promises for every operating point. Pressure, temperature, spring range, steam condition and flow must be checked together. The design cold hydraulic test pressure is 24 bar g, but after the internal components have been fitted the test pressure must not exceed 16 bar g. The safety devices in the surrounding system must be sized and arranged so that a fault cannot expose the valve or downstream pipework to pressure or temperature above its documented limits.

Flow sizing and connection choice

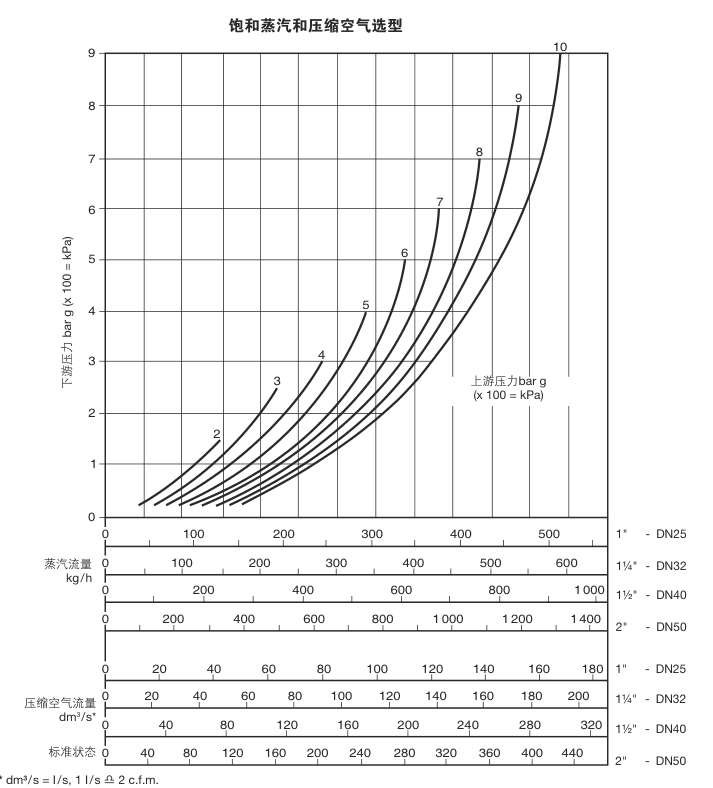

Choose the threaded connection and size from the required flow, upstream pressure, target downstream pressure and available pressure drop. The four BRV71 sizes have documented Kv values of 9.3 for 1 inch, 11.1 for 1 1/4 inch, 15.7 for 1 1/2 inch and 16.2 for 2 inch. The conversion relationships supplied with the technical information are Cv (UK) = Kv x 0.963 and Cv (US) = Kv x 1.156. The sizing chart should be read using the downstream pressure on the vertical scale and the relevant upstream-pressure curve, then checked against the required steam flow. A nominal size alone is not enough to confirm capacity.

For a pressure reduction example, the source technical information shows how to locate the downstream pressure, find the intersection with the upstream-pressure curve and then read the size line below. The same method should be repeated for the actual load and pressure conditions. For fluctuating loads, wet steam, unusual gas properties or a reduction ratio near the documented limit, obtain an engineering sizing check rather than selecting by pipe size alone.

Applications and practical boundaries

The BRV71 is suited to steam pressure reduction, point-of-use branches and other utility or process lines where a direct acting mechanical regulator meets the required capacity and control range. The documented installation guide identifies steam, compressed air and inert industrial gases as intended media. It does not establish a universal approval for every fluid, mixture or hazardous service. Confirm material compatibility, group classification, operating temperature and any local regulatory requirements before placing the valve in service.

Direct acting control is valuable because it does not require a separate control signal, but the same simplicity means selection and installation discipline are important. The upstream pressure, downstream set pressure, expected flow, pressure ratio, spring colour, connection standard and available maintenance access should all be settled before the purchase order. If the application needs a different published pressure reducing arrangement, the 25P pressure reducing valve page provides a separate comparison path. A compact selection can also be compared with the published BRV2S pressure reducing valve page. Where the project requires a pilot-operated pressure reducing valve, see the DP27 pressure reducing valve page rather than treating BRV71 as a substitute for that control architecture.

Installation and commissioning checks

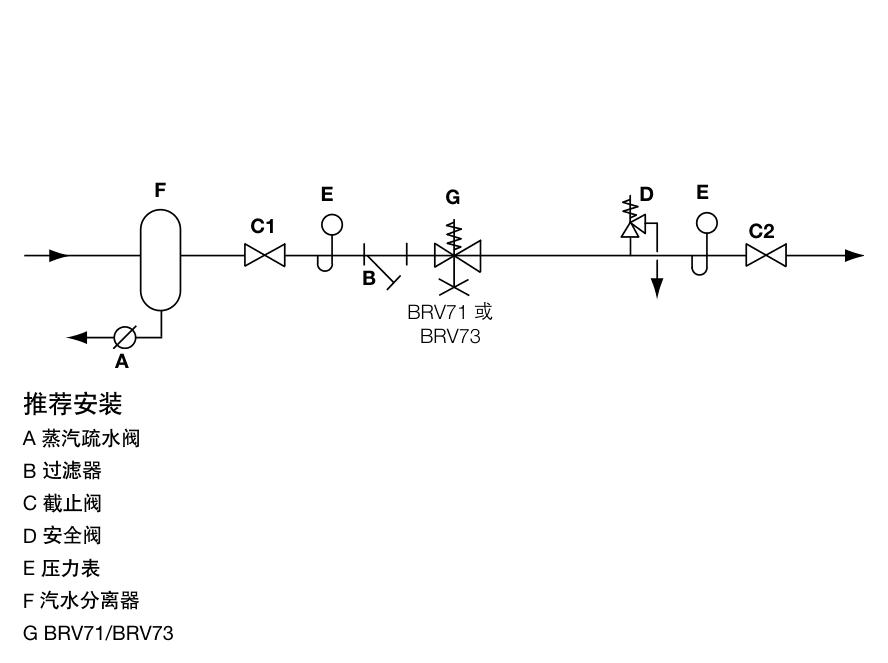

Install BRV71 horizontally and follow the arrow on the body for flow direction. The installation guide recommends locating upstream and downstream isolation valves 8-10 pipe diameters away from the valve. Pipework must be adequately sized to avoid excessive pressure loss, and eccentric reducers should be used where the line changes size. Pipe expansion and inadequate support must not transfer external stress into the valve body.

Protect the valve with an upstream filter mounted on its side so that collected water does not reduce the effective filter area. For wet steam, install a separator and trap set, or a suitable drain point and trap. Downstream pressure measurement is important for setting the valve; an upstream gauge helps check the supply pressure. A downstream safety valve is required for system protection, with enough margin between its reseating pressure and the BRV71 set pressure to avoid unstable operation.

Before adjustment, flush the pipework to remove dust, excess jointing material and other debris. Open the upstream isolation valve fully while the downstream valve remains closed, then turn the handwheel clockwise to raise downstream pressure gradually to the target shown on the gauge. Open the downstream isolation valve slowly and recheck the setting under normal flow. Once the desired pressure is reached, the coloured spring-range disc and locating pin can be used to prevent unauthorised adjustment, following the installation and maintenance instructions.

Maintenance and ordering information

Keep the plug and seat clean, and periodically clean both the upstream filter and the valve's internal strainer to prevent flow restriction. Before any maintenance, isolate the valve, release pressure safely and allow hot surfaces to cool. The seat is permanently installed in the body; if it is damaged, the body must be replaced. The documented spare groups include the three control springs, stainless steel control bellows, the bellows and pushrod assembly, bottom cover, strainer, gasket set, bolt sets and return spring. Maintenance work must be performed by qualified personnel using suitable tools and the documented sequence.

When ordering, state BRV71, the threaded BSP or NPT connection, nominal size, spring colour and required downstream pressure range. Confirm the upstream pressure, saturated-steam or gas service, expected flow, temperature, pressure ratio and the space needed for removal and adjustment. Spirax Sarco BRV71 should be selected against the complete operating case, not only the pipe size or the colour on the handwheel. With those checks complete, the valve provides a compact direct acting pressure reducing solution within the exact pressure, temperature and flow limits documented for BRV71.
